Easy operation and high performance with minimal noise.

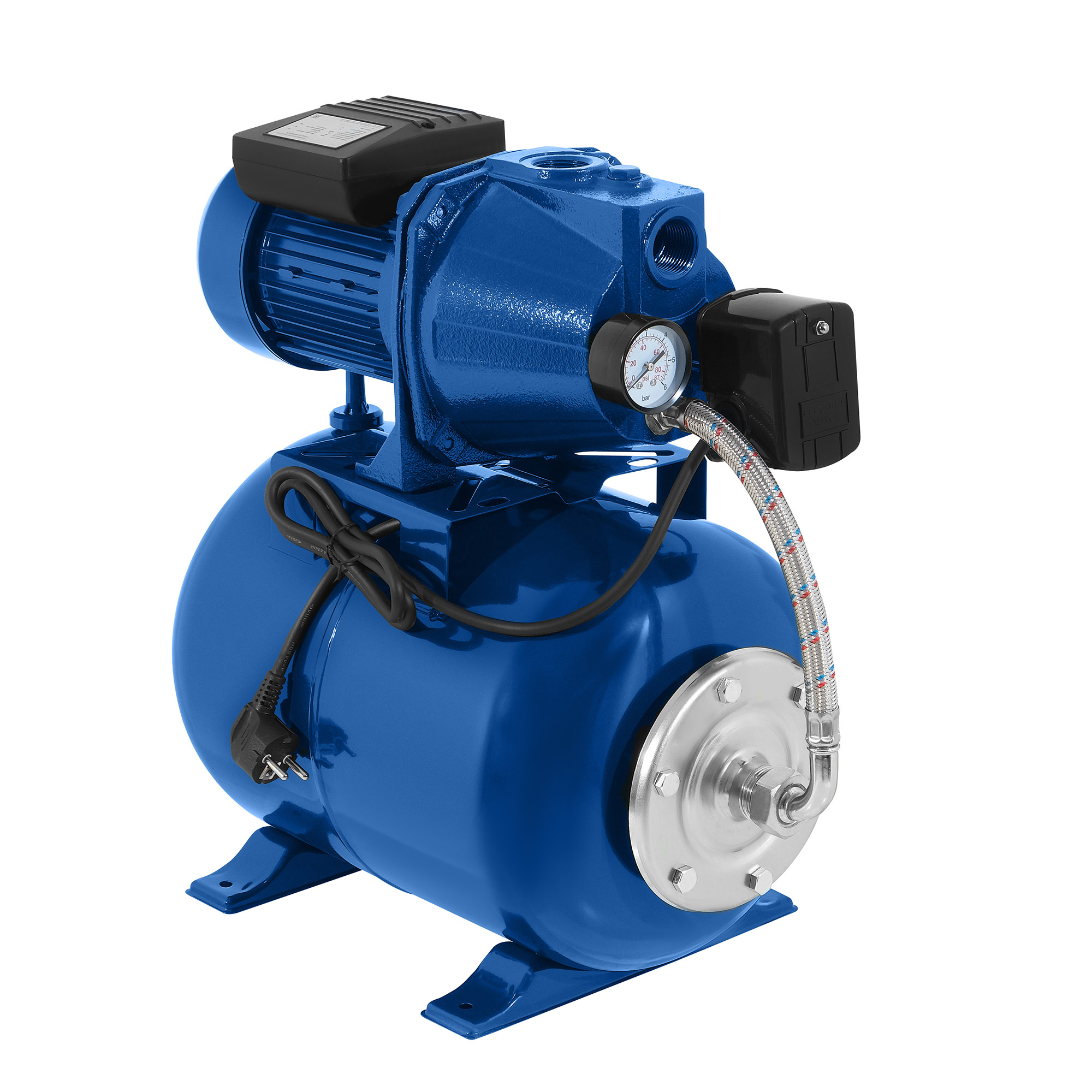

«Zerten» pumping stations are used to create pressure in the water supply network of individual houses and cottages, providing consumers with comfortable use of the water supply.
The stations automatically maintain the pressure within the set limits, regardless of the type of source: well, borehole, centralized water supply.
The pumping station is highly efficient, has high productivity, is capable of lifting water to a height of 45 m, has a low noise level, is practical and easy to operate.
| Model | S-60/45CA-24 |
| Body material | Cast iron |
| Material of the impeller | PPO |
| Power, W | 750 |
| Type of electric motor | Asynchronous single-phase |
| Maximum number of inclusions per hour | 20 |
| Electrical network parameters, V/Hz | 220/50 |
| Rotation speed, rpm | 2850 |
| Operating pressure, bar | 1,5-3,0 |
| Maximum suction depth, m | 8 |
| Maximum head, m | 45 |
| Maximum output, l/min | 60 |
| Temperature of the pumped liquid, | from +1 to +35 |
| Storage tank capacity, l | 24 |
| Maximum concentration of solid particles in water, g/m | 100 |
| Connection dimensions, inches | 1 |
| Insulation class | F |
| Degree of protection | IP68 |
| Product dimensions, cm | 48x28x49 |
| Weight, kg | 17 |
